Case Study: Precision Manufacturing of Solar Inverter Housings
Accelerating Prototyping, Enhancing Accuracy, and Scaling to 1M+ Annual Capacity
Project Background
As global demand for renewable energy accelerates, solar inverter manufacturers face increasing pressure to shorten development cycles, improve enclosure durability, and scale production rapidly.
A leading solar energy equipment provider approached us with a critical challenge:
Reduce prototype development time
Achieve near-perfect dimensional accuracy
Support large-scale production for international markets
The core component in focus was the solar inverter housing, a structural and thermal management enclosure designed to protect sensitive electronic systems in outdoor environments.
Technical Challenges
Solar inverter housings must meet strict performance standards:
High structural integrity for outdoor installation
Excellent heat dissipation for power electronics
IP-rated sealing compatibility
Tight dimensional tolerances for PCB and heat sink integration
Corrosion resistance under UV and humidity exposure
Additionally, the client required rapid iteration between design validation and pilot production — without sacrificing precision.
Engineering Solution
1️⃣ 30% Reduction in Prototype Development Cycle
Through an optimized integrated casting and CNC machining workflow, we restructured the development process:
Early-stage DFM (Design for Manufacturability) analysis
Rapid mold preparation using precision casting simulation
Parallel CNC finishing validation
As a result, the prototype cycle was shortened by 30%, significantly reducing the time from design to functional validation.
This acceleration enabled the client to move faster toward market testing and regulatory certification.
2️⃣ 99.8% Dimensional Accuracy Through Precision Casting & Machining
To achieve high structural integrity and assembly compatibility, we implemented:
High-pressure precision die casting for structural stability
Secondary 5-axis CNC machining for critical interface surfaces
Real-time dimensional verification using CMM systems
Statistical Process Control (SPC) for batch consistency
The final dimensional accuracy rate reached 99.8% compliance, ensuring seamless integration with:
Heat sinks
Power modules
Sealing systems
Mounting brackets
This high level of precision reduced assembly rework and improved overall inverter reliability.
3️⃣ Scalable Production: 1,000,000+ Parts Annual Capacity
To meet global distribution requirements, we deployed an integrated production system, including:
Automated casting lines
Multi-station CNC machining centers
Robotic handling systems
Inline quality inspection
This infrastructure supports an annual capacity exceeding 1 million components, while maintaining consistent tolerance control and surface finish quality.
Such scalability ensures our clients can expand into international solar markets without supply chain bottlenecks.
Performance Results
| Key Metric | Achieved Outcome |
|---|---|
| Prototype Development Time | ↓ 30% |
| Dimensional Accuracy | 99.8% |
| Annual Production Capacity | 1,000,000+ units |
| Process Integration | Casting + CNC + Inspection |
| Industry Application | Solar / Renewable Energy |
Industry Impact
By combining precision casting, high-accuracy CNC machining, and automated production systems, we enabled our client to:
Accelerate product launch timelines
Improve inverter structural reliability
Reduce post-assembly adjustments
Secure stable supply for global expansion
This project demonstrates how advanced manufacturing directly supports the growth of the renewable energy industry.
Why It Matters for Solar & Energy Equipment Manufacturers
For companies developing:
Solar inverters
EV charging systems
Energy storage enclosures
Power electronics housings
Partnering with a precision manufacturer capable of rapid prototyping, high dimensional stability, and scalable production is essential for market competitiveness.
Conclusion
This solar inverter housing project illustrates how integrated engineering and manufacturing expertise can shorten development cycles, improve dimensional accuracy to 99.8%, and scale production beyond one million units annually.
As renewable energy technologies continue to evolve, precision manufacturing will remain a key enabler of efficiency, reliability, and speed to market.
Depending on how your design will be used, there are many different materials that can be used with CNC milling. Once you’ve decided to make your product with CNC machining, it’s time to choose the best material, whether it’s metal, plastic, or wood. In the next few articles, we’ll talk about the most common CNC milling materials and explain where each one is best used.
CNC machining is useful because it can be changed to fit different needs. This is because precise CNC milling and turning can use a wide range of raw materials to make finished products. This gives design engineers a lot of choices when they are making prototypes and commercial products.
“We can easily manage if we will only take, each day, the burden appointed to it. But the load will be too heavy for us if we carry yesterday’s burden over again today, and then add the burden of the morrow before we are required to bear it factorial non.”
Rebert Kosta
Materials often used for CNC milling
CNC milling of materials that are often used
One of the most common materials used for CNC milling is metal, but there are many other materials as well. Let’s take a look at the most popular choices and the best use for each metal.

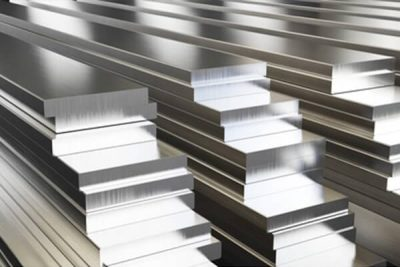

· aluminum
Aluminum is a great choice for both functional and aesthetic parts, and it may be the most common material used for CNC milling. Most of the time, aluminum is easier to work with than other metals. From a business point of view, it is the most useful material. When aluminum parts are exposed to the environment, they form a protective layer that makes them stronger and more resistant to corrosion. CNC milling aluminum is great for the automotive, aerospace, medical, and consumer electronics industries because the material is so good. A few examples are parts for airplanes, electronic shells, medical tools, gears and shafts, and other specific uses.
· Steel
Different steel alloys used in CNC milling services are mostly made to work well with machines. Most of the time, steel is used to improve parts that need to be easier to shape and have stronger welds. Even if the quality of different materials is different from alloy to alloy (1018, 1215, 12L14, etc. are some commonly used alloys). Most of this material is used for commercial items, parts that need to be welded well, gears and shafts, and other high-stress applications. Steel alloys are used for different things.
· Stainless steel
Stainless steel alloys are used for a number of reasons such as they can be heated and are resistant to corrosion. In CNC milling, stainless steel is used in a wide range of things such as medical equipment, electronic hardware and other things that need to be formed and welded more easily. Stainless steel alloys are also widely used in the automotive and aircraft industries.
Titanium
Titanium is a special material because it has a high melting point. This makes it useful in many industries and for many different things. It is thought to be resistant to corrosion and bendable. It can also handle salt and water. Titanium is a strong and long-lasting material that is biocompatible, light, and can be used for many things, such as jewelry, airplane parts, and medical implants.
· Brass
Brass gives stability when there isn’t enough intensity and is one of the easiest and cheapest metals to process with a CNC machine. A few common uses are for medical equipment, consumer goods, electrical hardware, and contacts. Bronze is used in engineering, pipelines, steam work, and even musical instruments because it is resistant to corrosion and has a low coefficient of friction.
· copper
Copper is one of the few metals that can make CNC milling materials conduct electricity. In the process of CNC, a high level of conductivity helps to shape. This material doesn’t rust because it has a high resistance to corrosion. Among the engineering parts that are often used in the automotive field are cooling systems, heat exchangers, valves, and radiators. It is very important to know that copper is not very resistant to things like acid, halogen sulfide, and ammonia, even though this is true.
